Polycrystalline Solar Panel

235 WP Poly

54 silicon cell

Module EfficiencyNominal Maximum PowerRated VoltageVoltage at Maximum Power

15.93 %

235 W

27.70 V (DC)

27.70 V

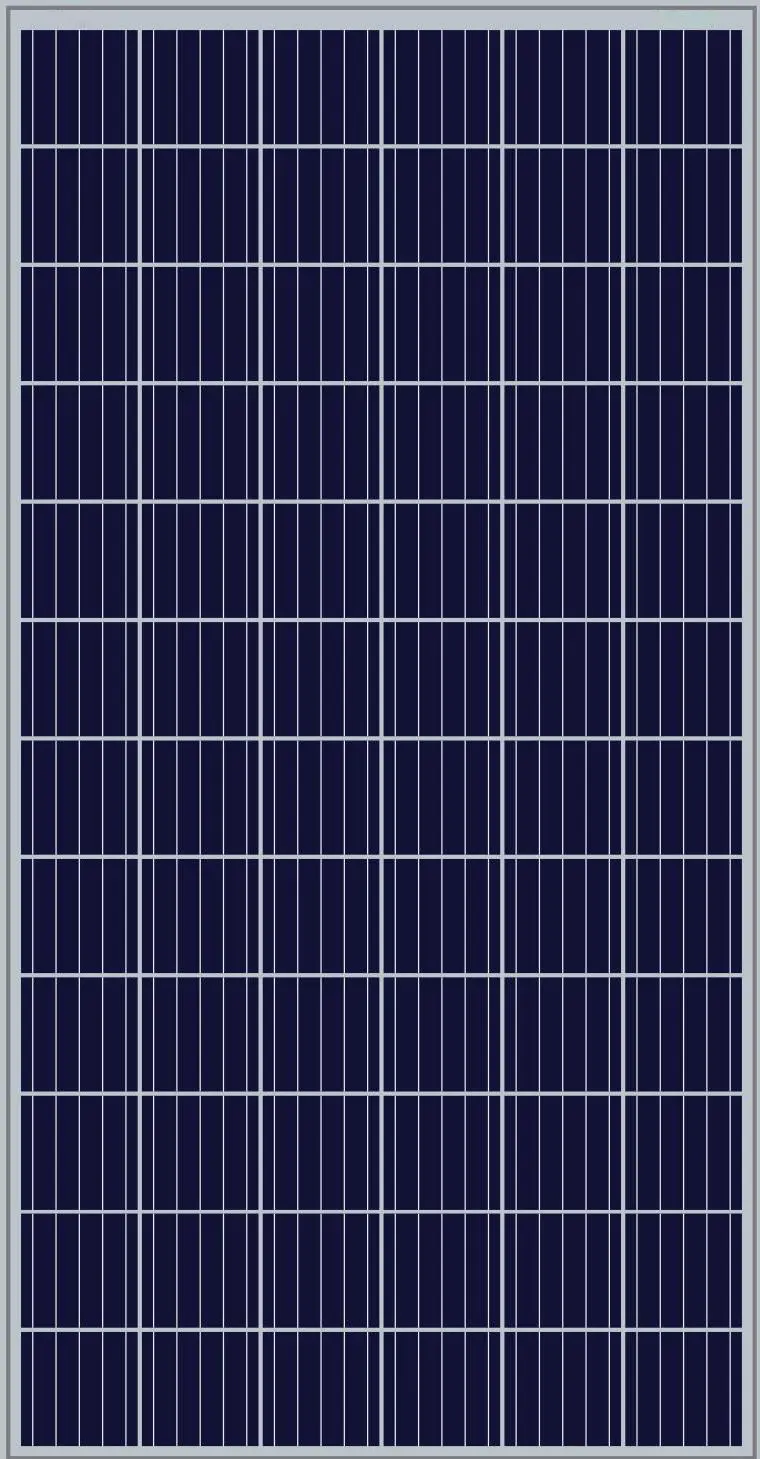

100 Wp Solar panel

Description

The 235 watt solar panel is one of the best-rated solar panels, with high-quality ‘A’ grade solar cells and ultra-clear tempered glasses that are not easily broken. It can work effectively even in low light and cloudy conditions. Our 235-watt 12V / 24V solar PV module includes an IP 65 back side junction box.

  • 54 Silicon Polycrystalline Cell
  • Increased power output and lower BOS cost
  • Anodized aluminium alloy 35 mm thick: Superior protection
  • Mounting holes are reserved for ease of installation.
  • Weatherproof IP65 PPO enclosure with bypass diodes
  • Improved heat dissipation, increased safety
  • Simplified wire fix: Reduced cable length
  • Reduced cable energy loss
  • 3.2 / 4.0 mm Tempered & Low Iron Glass

Warranty

Product Warranty: 5 Years

Power Output Warranty of 10 Years

Technical Specifications

Panel Technology –Polycrystalline
Operating Voltage –24 Volt
Output Power –235 Watts
Open Circuit Voltage –33.70 Volt
Short Circuit Current –9.30 Amps
